Technologies Applying the latest solutions

rexton g4 tech cover
А proud SUV legacy and modern expertise

We don’t just understand 4x4, we’re fluent in it. Specialists with over 66 years of 4-wheel drive experience.

The Rexton is powered by a 2.2L diesel engine and features enhanced independent rear suspension for superior handling and ride quality.

Normally the vehicle runs in rear-wheel drive, which enhances handling stability by optimising weight distribution, but the driver is free to select one of two four-wheel drive modes as needed.

The Rexton can also tows loads of up to three tons, the most for this class of SUV.


Engine & transmission Great torque, smooth shifting

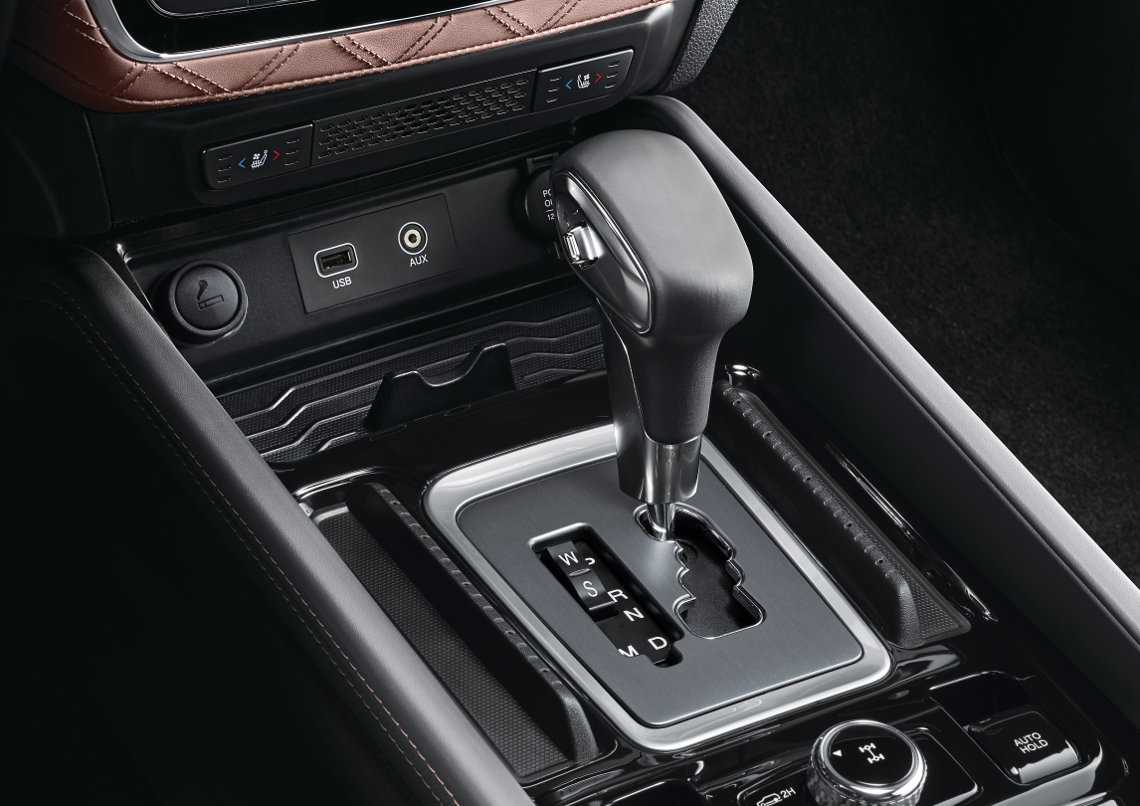

rexton g4 Mercedes-Benz transmission
Engine: 220 e-XDi

The new highly-efficient and extremely quiet 220 e-XDi turbo charged diesel engine delivers 178ps of power at 4000rpm and maximum torque of 420Nm from just 1600rpm and is designed to provide low-end torque for effortless cruising whatever the conditions, whatever the load.

Transmission: the choice is a 7-speed E-tronic from Mercedes

Every Rexton comes with a state-of-the art automatic or manual transmission. The 7-speed Mercedes-Benz E-Tronic automatic transmission, offering gear changes with world-class durability and smoothness, is our customer's first choice.


Drivetrain 4WD

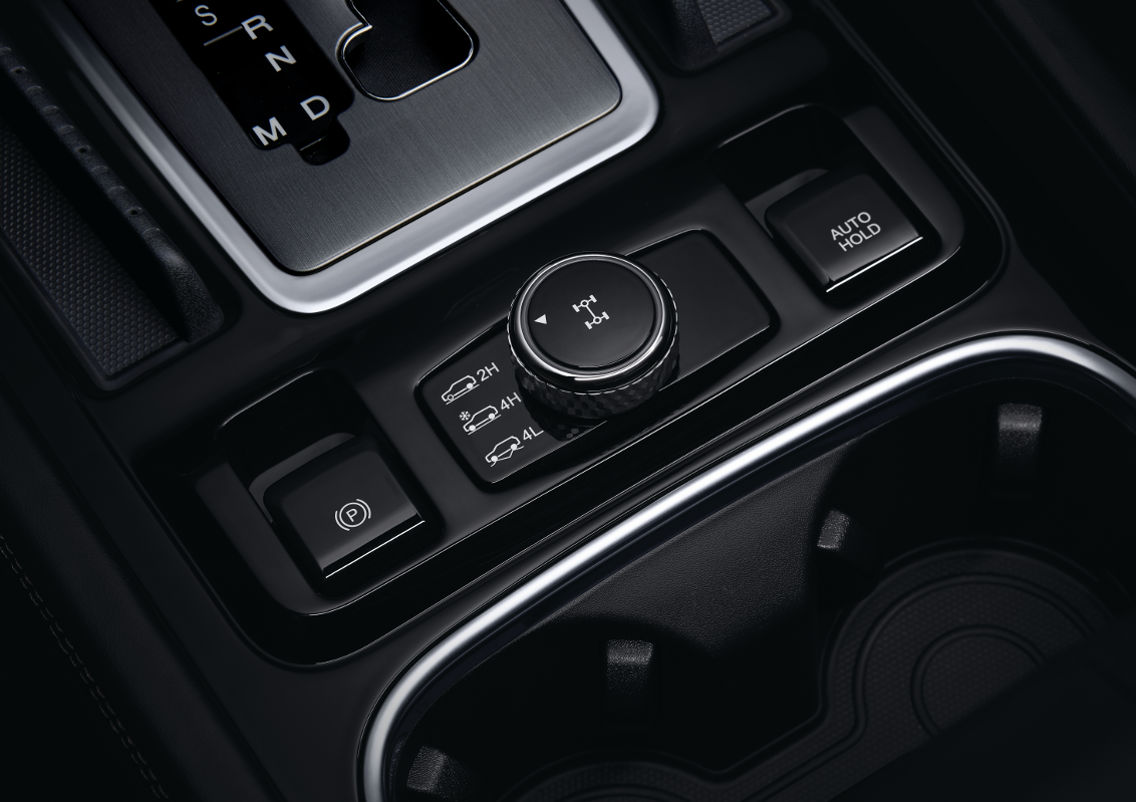

rexton g4 4x4
Fluent in 4x4

The new Rexton 4x4 system draws on the exclusive experience of continuously advancing 4x4 technology.

For greater efficiency and fuel-economy, the car features a part-time 4x4 option with power delivered just to the rear wheels for normal road use. 4-wheel drive can be selected electronically when required and low-ratio selected when the off-road conditions become more challenging.


Safety More protection than ever

rexton g4 safety cover
Improving the safety of all occupants

High-density, high-tensile-strength steel plate makes up 81.7% of all the steel plate used in the Rexton’s body, providing superb rigidity and protection against deformation in a collision.

The new-concept ‘Quad Frame’ has been engineered specifically to minimise the possibility of injury to vehicular occupants in a collision. The frame members feature a quadruple-layered structure that exceeds the global standard for lateral collision safety. Thе ‘crash zone’ of the frame is designed to absorb thе frontal collision force, thereby protecting the people inside.

The Rexton comes equipped with nine airbags, including a driver knee-airbag and second-row side airbags.


Technical specifications (EU version)

Download technical specifications pdf
Engine e-XDi220
Driven wheels RWD 4WD
Engine Fuel - Diesel
Fuel system - High pressure common rail direct injection
Volume cc 2'157
Bore x Stroke mm 86.2 х 92.4
Compression ratio - 15.5:1
Cylinders - 4, in line
Performance Max power kW/rpm 133.1/4'000
PS/rpm 181/4'000
Max torque Nm/rpm 400/1'400~2'800 (420/1'600~2'600)
Max speed km/h 185
Drivetrain Driven wheels - Rear wheels Part time (4х4) with
low-gear mode and lock
Transmission - Manual, 6+1 (Automatic, Mercedes-Benz 7+2)
Suspension front - Double wishbone system with coil springs. Stabilizer bar
rear - Five-link with coil springs or Impact-absorbing 10-link (IRS). Stabilizer bar
Steering - Power steering
Brakes front - Disc brakes, ventilated, 320 mm x 28 mm
rear - Disc brakes, ventilated, 315 mm x 20 mm
Wheels - Alloy wheels, 7.0J x 17 or 7.5J x 18 or 8.0J x 20
Tires - 235/70R17 or 255/60R18 or 255/50R20
Dimensions Length mm 4'850
Width mm 1'960
Height mm 1'825 (with roof rack)
Wheelbase mm 2'865
Tread front mm 1'640
rear mm 1'640
Overhang front mm 895
rear mm 1'090
Min clearance front mm 213
rear mm 203 (IRS:224)
Min turning radius m 5.5
Approach angle deg 20.0
Departure angle deg 22.5
Ramp angle deg 20.7
Seats, including driver броя 7
Weight Gross vehicle weight kg 2'850 2'960
Kerb weight kg 2'020~2'092 (2'030~2'133) 2'120~2'192 (2'130~2'233)
Gross trailer weight Braked kg 2'700 2'700 (3'000)
Unbraked kg 750
Fuel Consumption Extra urban l/100km 6.5 (6.8) 6.7 (7.0)
Urban l/100km 9.8 (10.1) 10.0 (10.4)
Combined l/100km 7.7 (8.0) 7.9 (8.3)
CO2 (combined) g/km 203 (211) 208 (218)
Tank volume litres 70
Emission regulation - Euro 6

Remark:

Figures in parentheses apply to Automatic Transmission only;

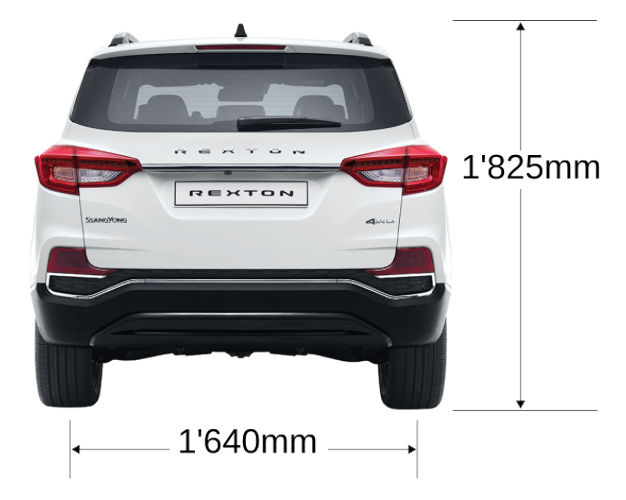

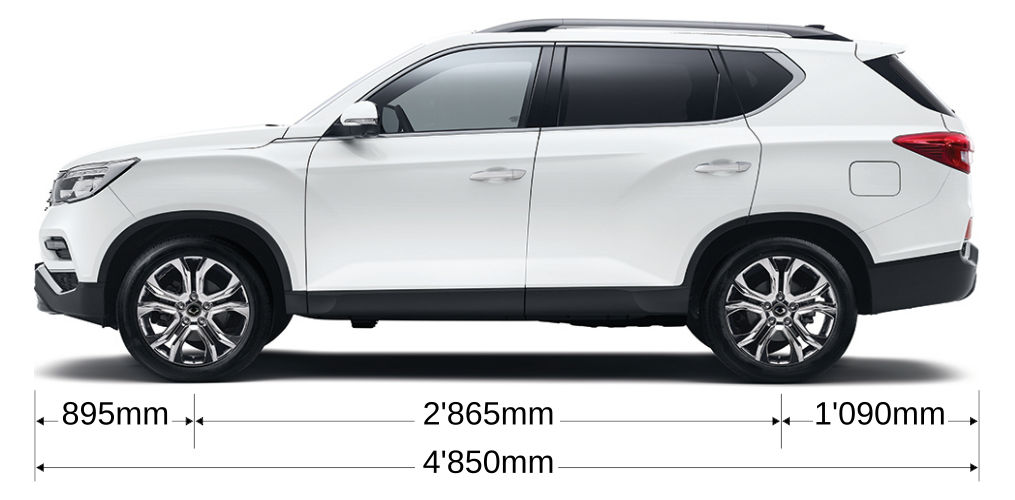

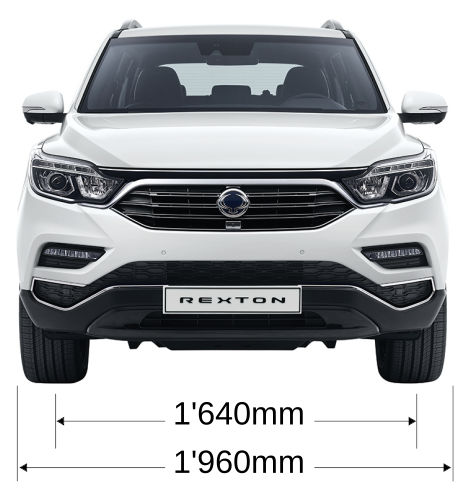

rexton g4 front rexton g4 side rexton g4 rear
